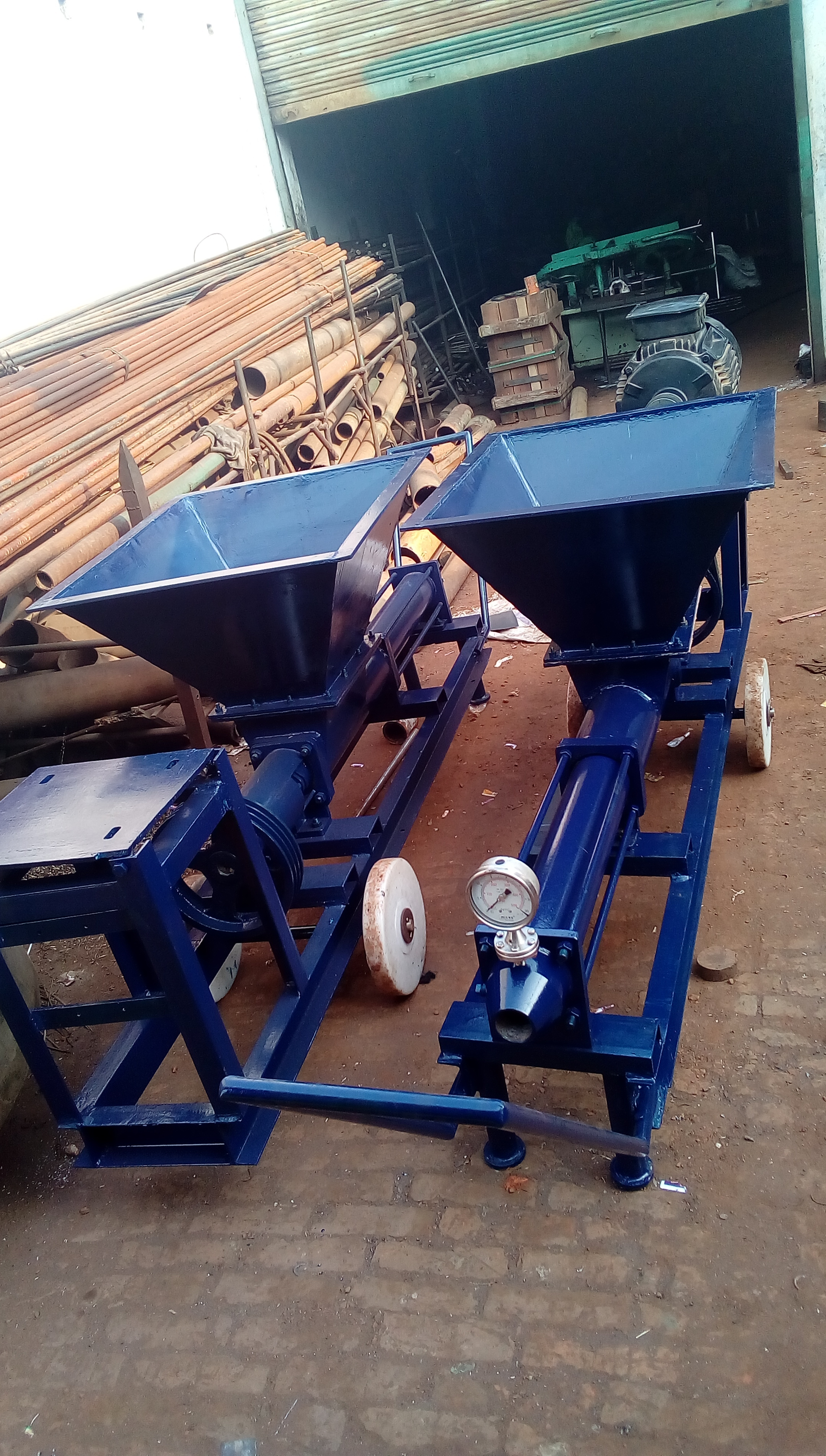

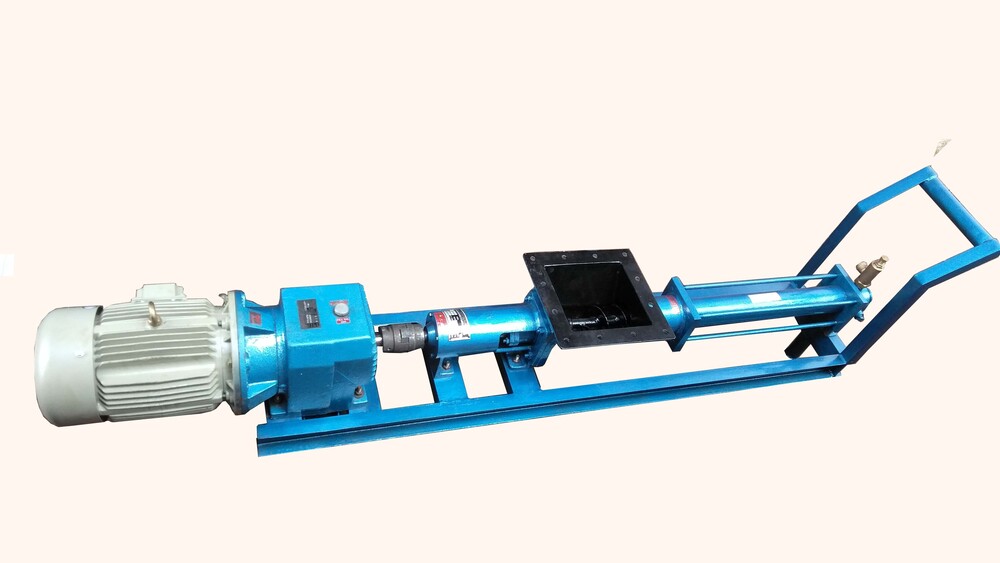

Cement Slurry Screw Pump

Price 65000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cement Slurry Screw Pump Specification

Features
Low Pulsation, High Viscosity Handling, Wear Resistant

Mounting Type
Horizontal

Working Temperature
80 Celsius (oC)

Caliber
50 mm

Voltage
415 Volt (v)

Speed
200-280 RPM

Theory
Other

Control System
Manual & Automatic

Head Size
30 m

Discharge Pressure
24BAR

Inlet/Outlet
DN50 / DN65

Flow Rate
2M3/HR

Frequency
50 Hz / 60 Hz

Material
Cast Iron / Stainless Steel

Structure
Other

Power
Electric

Standard
ISO / CE

Fuel Type
Other

Pressure
Other

Suction Type
FLOODED

Seals Type
Mechanical Seal

Priming
Self Priming

Pump Type
Screw Pump

Capacity
2 m3/hr

Installation Position
Floor Mounted

Protective Rating
IP55 Motor

Stator Material
Nitrile Rubber / EPDM / FKM

Lubrication
Grease/Oil Lubricated

Rotor Material
Chrome-Plated Steel

Seal Material
Carbon/Silicon Carbide/Tungsten Carbide

Fluid Temperature Range
-20°C to +80°C

Viscosity Range
Up to 80,000 mPa·s

Connection Type
Flange / Thread

Maintenance
Easy Dismantling Design

Service Life
Long Service Life

Pump Body Coating
Epoxy Painted

Ambient Temperature
Up to 40°C

Allowable Solids
Max. Particle Size up to 6 mm

Shaft Material
High Strength Alloy Steel

Cement Slurry Screw Pump Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Month

Delivery Time
1 Week

Main Domestic Market
All India

About Cement Slurry Screw Pump

Theprogressive cavity Grout type pump is solution when pumping viscous, abrasivematerials., to pump neat cement, bentonite, cement / bentonites, ultra finecements and some smooth, creamy, lightly sanded packaged grout mixes, cement /sand mortar and plaster coats. These pumps are designed with variable speedcontrol with VFD or chain Spoket.

Applications :

High Pressure grouting, building construction, floor toping, floor restoration,slap under sealing, mud jacking, roadways repair, dowel rod grouting, slapraising, waterproofing, cuble, rock bolts, well casing, spraying top coats,plastering.

Technical Specifications:

Capacity	4 - 50 LPM
Discharge Pressure	12 Bar, 24 Bar & 36 Bar

Exceptional Viscosity and Solid Handling

This screw pump is ideal for conveying highly viscous substances, such as cement slurry, with a maximum viscosity of 80,000 mPas. It also accommodates solids up to 6 mm in diameter, ensuring reliable operation in challenging environments. The pumps positive displacement mechanism delivers consistent and low-pulsation flow, even when handling abrasive or particulate-laden fluids.
